MONOROOF - PU & PIR Roof Panels

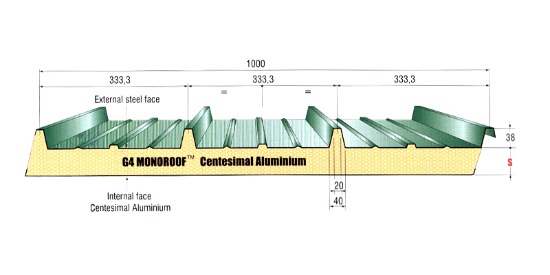

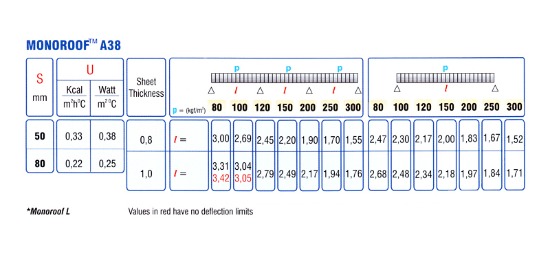

GLAMET is Self-Supporting metal roof panels, insulated with PU/PIR Rigid foam, for pitched roofs with a minimum slope of 7% or 4o with GLAMET serie, both face material are metal, which act as united structure with foam core providing stregth than other traditional roofs Hence, reducing purin structure, which span table provide as below.
| Number of ribs | 4 ribs |
| Top sheet | |
| Pre painted Aluminum Zinc coated steel | 0.45 mm |
| Aluminum sheets | 70 micron |
| Bottom sheet | |
| PVC sheet | 70 micron |
| Aluminum sheets | 0.08 mm |
| Polyurethane thickness | |
| Polyurethane foam specification | |
| PU foam type | B3 grade, B2 grade (PIR) |
| Overall density | 38 +/- 2 Kg / m3 |
| Thermal conductivity of PU foam | 0.024 Kcal / w k |
| Useful width | 1,000 mm |
| Rib height | 38 mm |
| Temperature range | - 40°C to + 80°C |
